Bottle / Container Lines
Engineered by Edge Infinium — Fully automated bottling lines integrating filling, capping, labeling, and conveying for liquids and viscous products.
Technical Specifications
| Parameter | Specification |
|---|---|
| Line Type | Monoblock / Linear / Rotary |
| Capacity | 500 – 20,000 bottles/hour |
| Filling Type | Volumetric / Gravity / Pressure |
| Bottle Size | 50 ml – 5000 ml |
| Material | SS304 Frame & Contact Parts |
| Automation | PLC + Servo Motors + HMI |
| Capping | Screw, Press-on, ROPP, Trigger |
| Labeling | Self-adhesive, Hot melt, Shrink sleeve |
| Power | 415V AC, 3-Phase, 50Hz |
Product Gallery

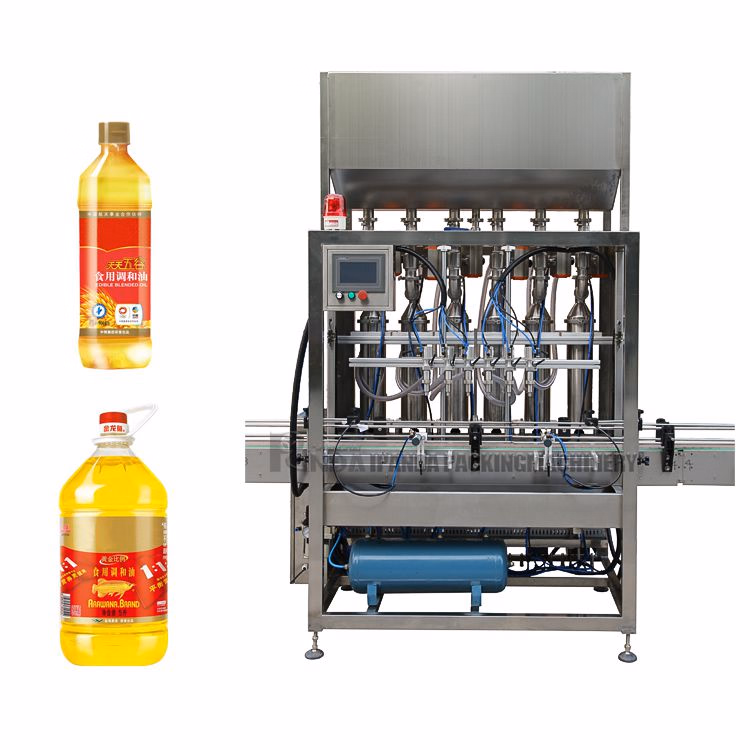

View 1
View 2
View 3
View 4
View 5
View 6
Edge Infinium Bottle Lines – Product Information
Complete monoblock or linear bottling lines integrating filling, capping, labeling, and inspection in one seamless system.
Volumetric piston fillers for high accuracy (±0.5%) in oils, syrups, and viscous liquids. Gravity/pressure for water-thin products.
Servo-driven nozzles with no-drip technology and auto height adjustment for different bottle sizes.
Supports PET, glass, HDPE bottles from 50 ml to 5 liters. Quick change parts in under 10 minutes.
Integrated CIP system with spray balls and return pumps for full hygienic cleaning.
Optional vision inspection, rejection, and date coding for 100% quality control.
Setup & Operation Instructions
Connect bottle feed conveyor.
Adjust nozzle height to bottle size.
Set filling volume and speed.
Perform cleaning (CIP) regularly.
Salient Features
Complete turnkey filling, capping & labeling line
500 – 20,000 bottles/hour capacity
Volumetric, gravity, or pressure filling
SS304 food-grade frame & contact parts
PLC + HMI with servo precision control
Quick changeover for bottle sizes (5 min)
No bottle – no fill – no cap safety logic
Built-in CIP (Clean-in-Place) system
Modular design for future expansion
Applications
Scale Your Bottling Operation
Contact Edge Infinium for layout design, capacity planning, or full installation support.
